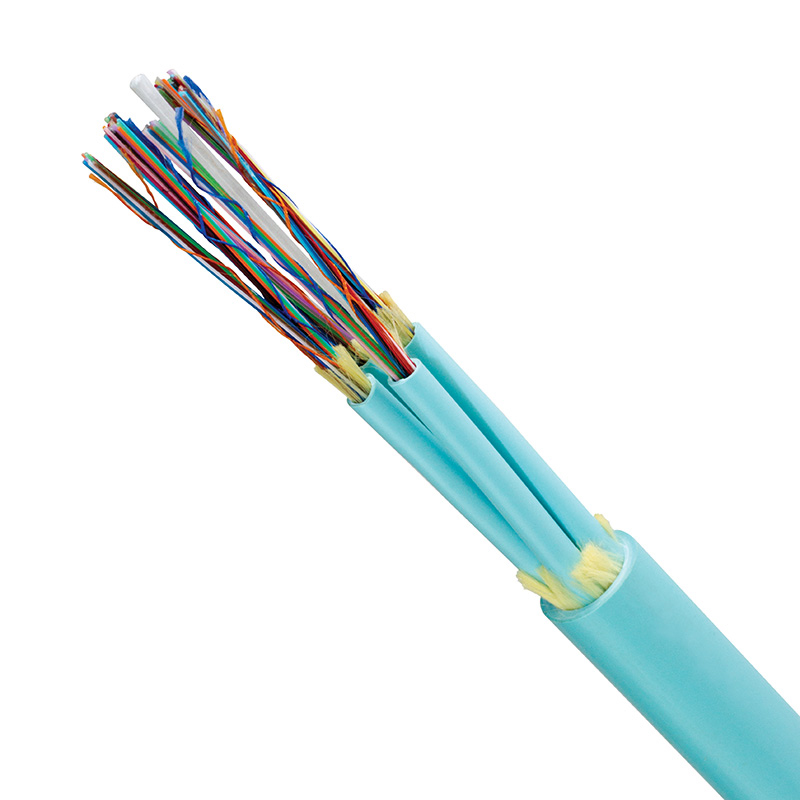

Indoor Breakout Fiber Optic Cable -GJPFJV

Technical Parameter

No. of cable				6
Fiber Model				G.652D

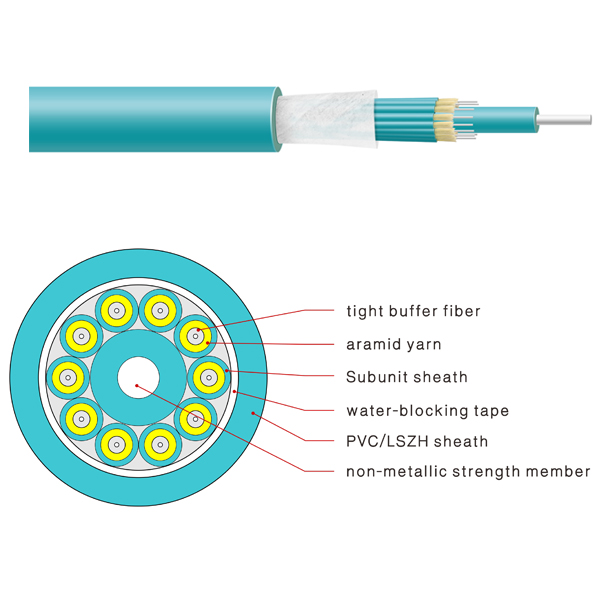

Design(StrengthMember+Tube)				1+10
Central Strength Member		Material		FRP
		Diameter（±0.06）mm		2
Tight lines		Material		PVC/LSZH
		Thickness（±0.03）mm		0.32
		Diameter（±0.06）mm		0.9
Strength Member		Material		Aramid Yarn
Inner Sheath		Material		PVC/LSZH
		Thickness（±0.2）mm		0.4
		Diameter（±0.2）mm		2
Outer Sheath		Material		PVC/LSZH
		Thickness（±0.2）mm		1
Cable Diameter（±0.2）mm				8.3
Cable Wetght（±10）kg/km				66
Attenuation	1310nm		dB/km	0.8
	1550nm			0.6
Allowable Tensile Strength	Short Term		N	660
	Long Term			200
Allowable Crush Resistance	Short Term		N/100mm	1000
	Long Term			300
Min. bending radius	Without Tension			10.0×Cable-φ
	Under Maximum Tension			20.0×Cable-φ
Operation Temperature range（℃）				-10~+40

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

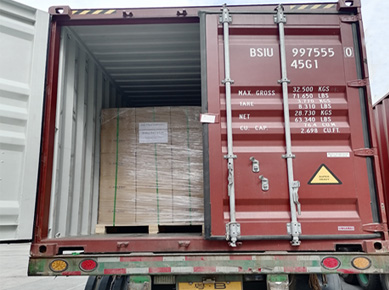

Package
