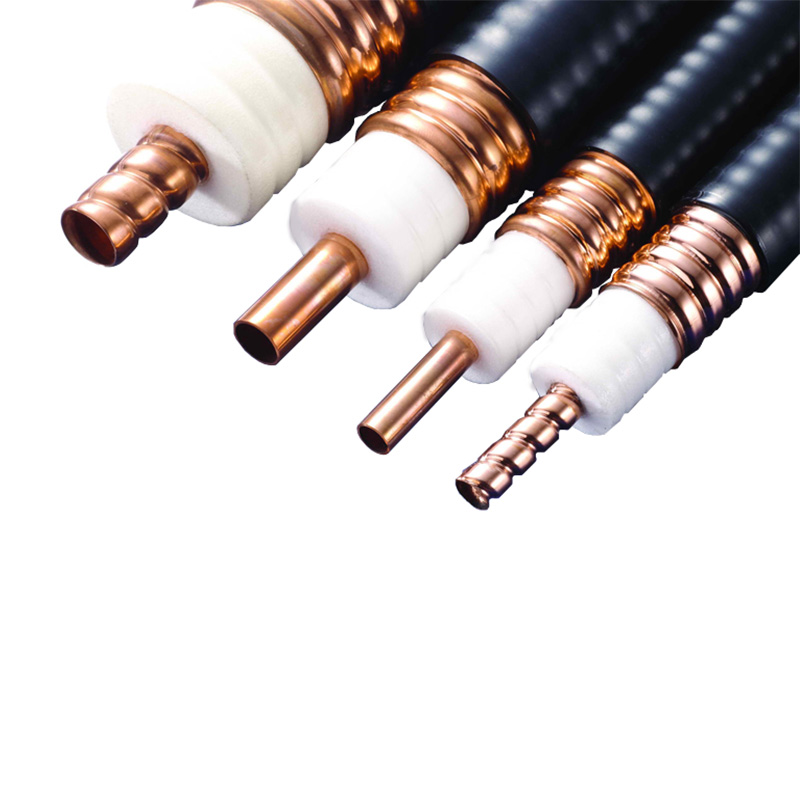

Feeder Cable

Characteristics

Inner Conductor	Helical corrugated copper tube	Φ 17.3±0.15 mm
Dielectric	Foamed PE	Φ 42.5±0.25 mm
Outer Conductor	Corrugated copper tube	Φ 46.5±0.30 mm
Jacketing	Black, halogen-free fire-retardant thermoplastic	Φ 49.5±0.30 mm
Specifications - Electrical Characteristics at +20°C

Characteristic Impedance				50 ± 1 Ω
Return Loss				Typical: 24 dB(1.13) for 100 m cable with connector
Attenuation				See table below
Capacitance				76.0 pF/m
Cut-off Frequency				3000 MHz
Max Power Rating				See table below
Peak RF Voltage Rating				5.6 kV
Peak Power Rating				310.0 kW
DC resistance				Inner conductor: 0.91 Ω/km, Outer conductor: 0.52 Ω/km
Maximum Pulling Force				3000 N
Minimum Bending Radius				Single Bending: 250mm, Repeated Bending: 510 mm
Operating Temperature Range				-55 ~ +85 °C

Frequency (MHz)	Attenuation (dB/100m)	Power Rating (kW)	Frequency (MHz)	Attenuation (dB/100m)	Power Rating (kW)
150	0.97	13	1800	3.9	2.88
450	1.76	6.97	2000	4.12	2.69
800	2.43	4.89	2200	4.45	2.47
900	2.6	4.53	2500	4.8	2.32
1000	2.76	4.24	2700	5.06	2.22
1500	3.52	3.25
* Attenuation values are typical at ambient temperature +20°C. Power rating ambient temperature +40°C, inner conductor +100°C.

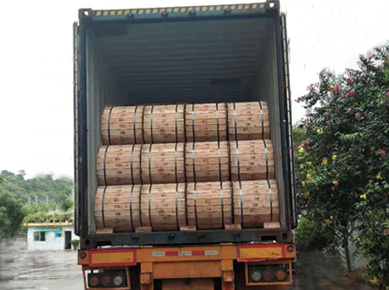

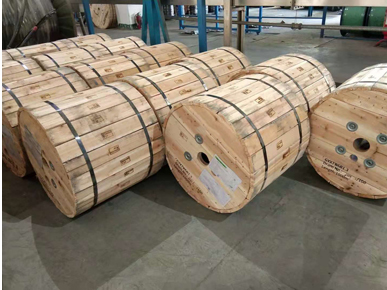

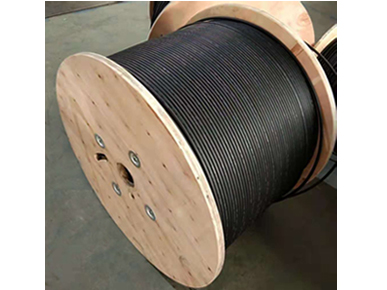

Package
