GJXCH Indoor Drop Cable

Product Description

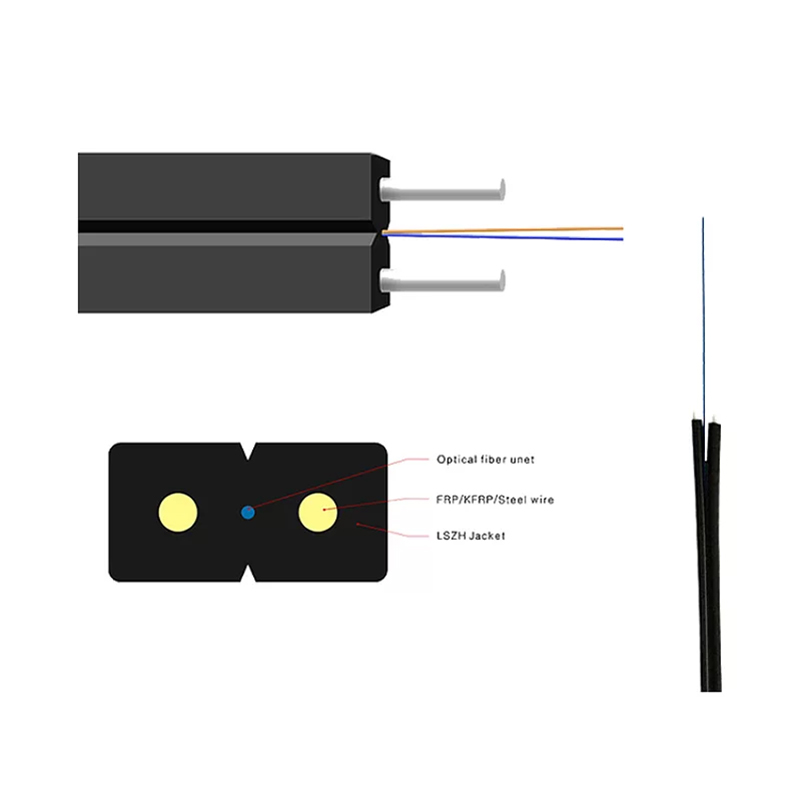

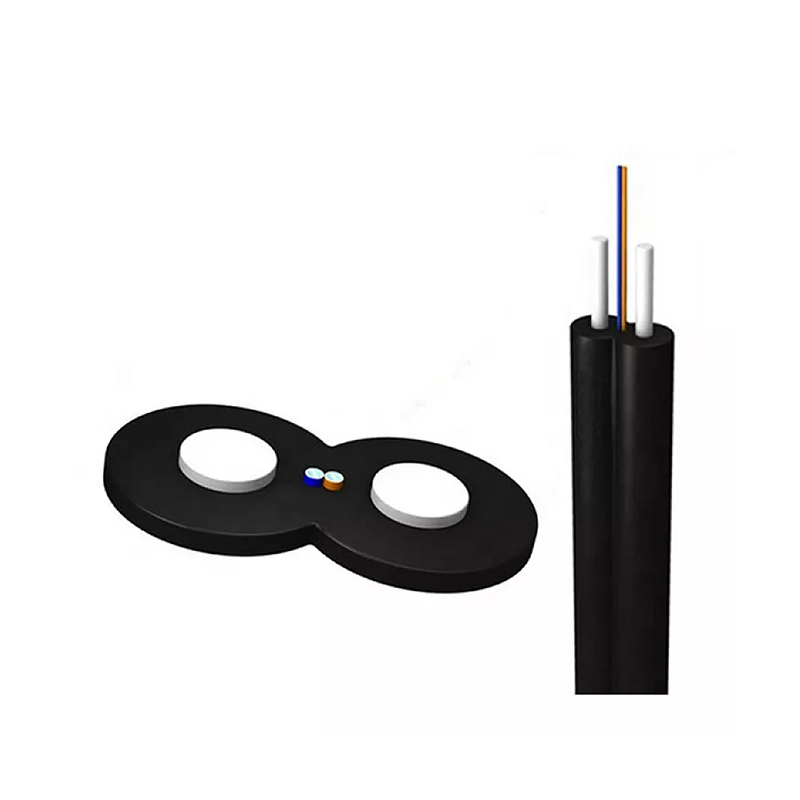

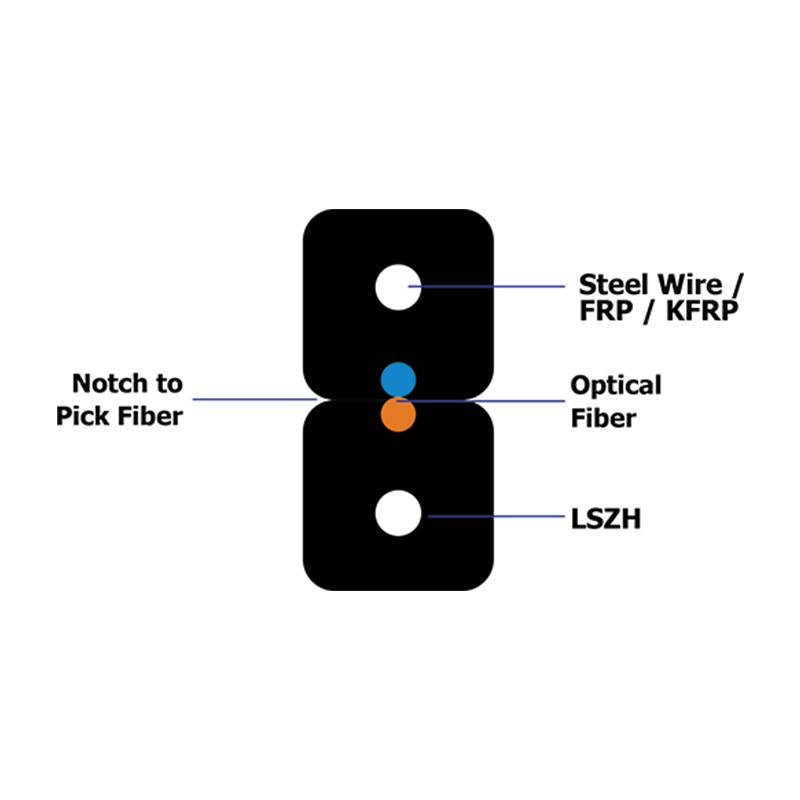

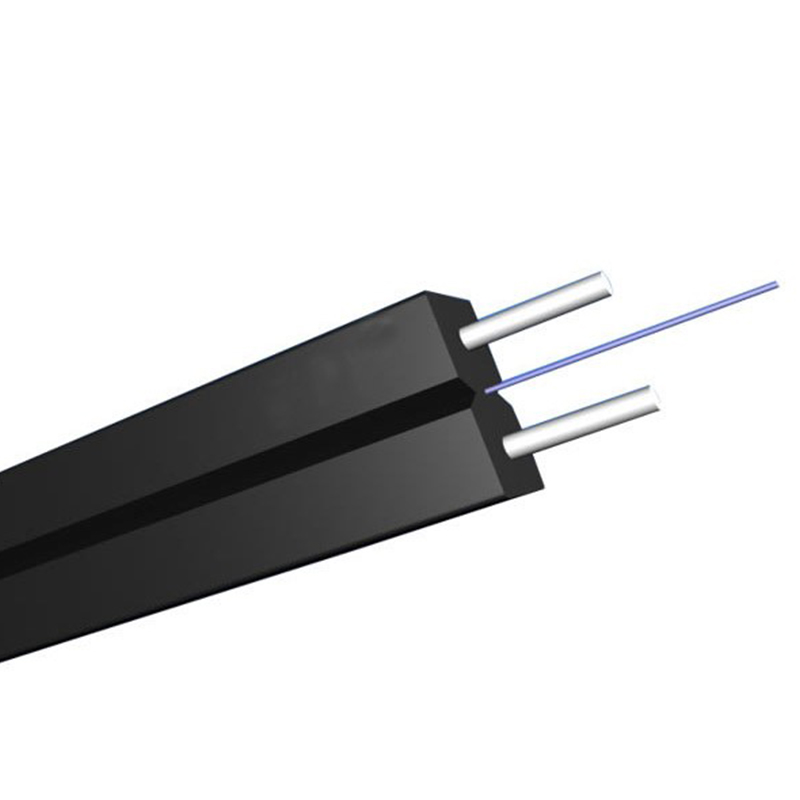

The compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with one/two single mode /bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip.

Characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.

Technical Parameter

Item			Technology parameter
Cable type			Drop Cable
Cable Count			1 2 4 6 8 12
Fiber color			Blue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, Aqua
Fiber type			9/125 (G657A2)
Sheath color			Black and white
Sheath material			LSZH
Cable dimension (mm)			3.0(±0.1)2.0(±0.1); 5.2(±0.1)2.0(±0.1)
Cable weight (Kg/km)			20
Min. bending radius (mm)			10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)			0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)			200; 600
Crush resistance (N/100mm)			1000; 2200
Operation temperature (℃)			-20~+70

Package
