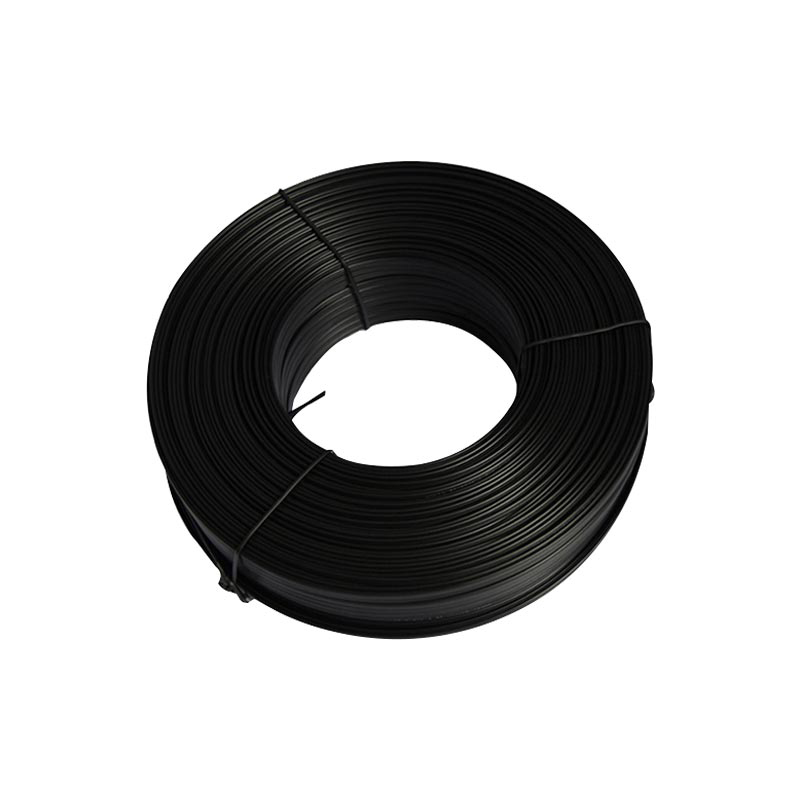

GJYXCH Outdoor Drop Cable

  • Product Description

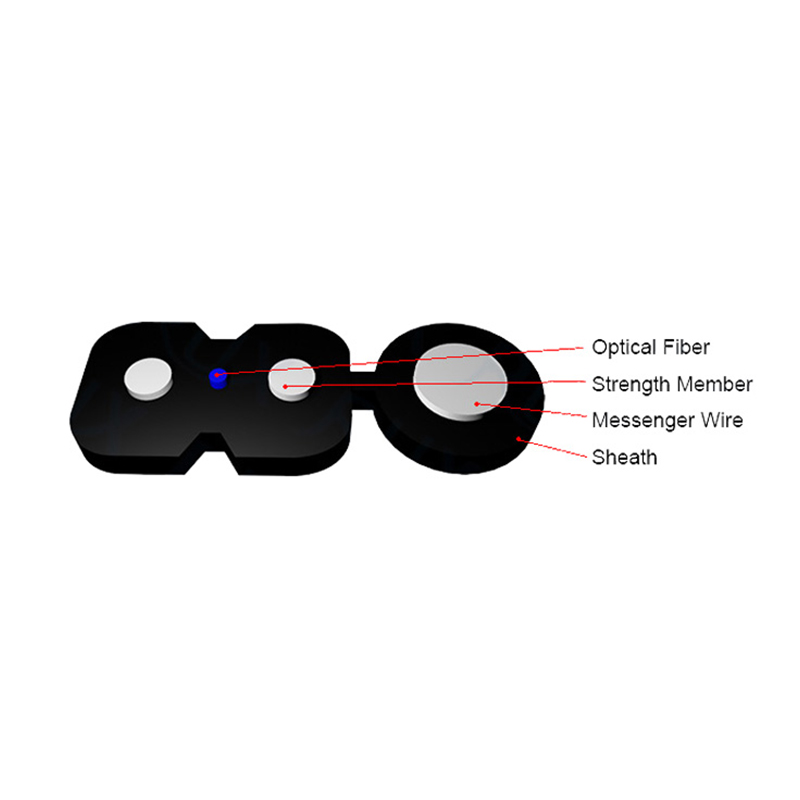

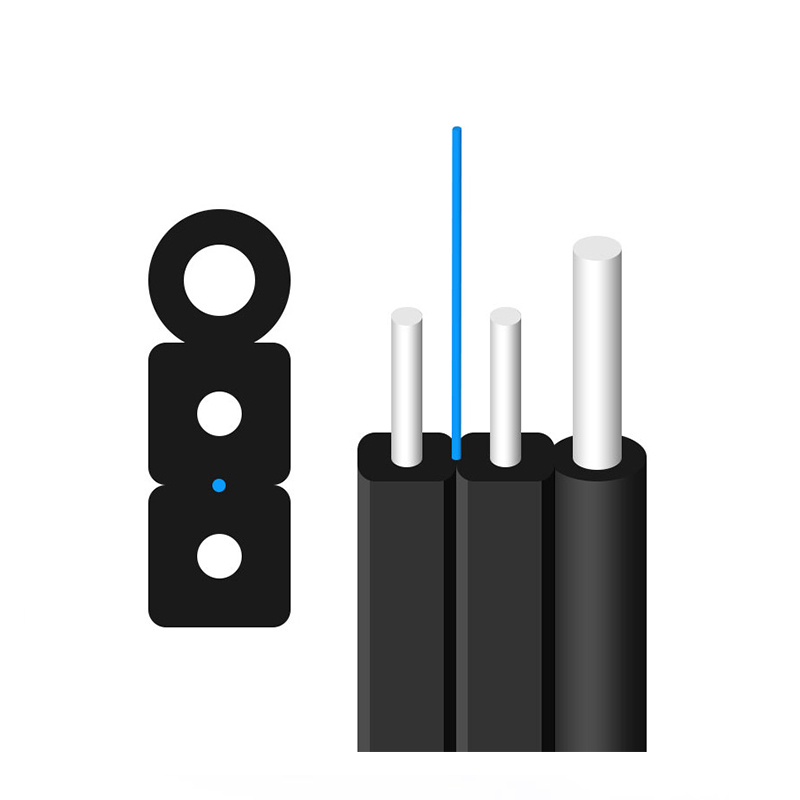

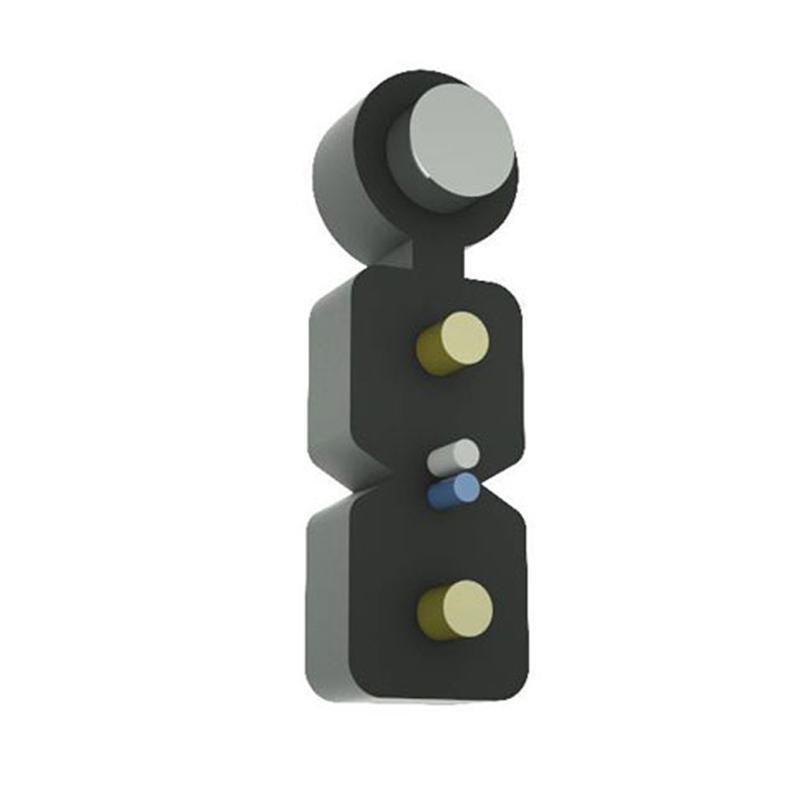

The compact, self-supporting fig 8 aerial fiber optical drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches, it is an enhanced performance FTTH solution. The cable constructed with one/two single mode /bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member and a messenger wire. This cable is very light and easy to install and strip.

Characteristics
  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber.
  • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
  • Simple structure, light weight and high practicability.
  • Novel flute design, easily strip and splice, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath.
Technical Parameter
Item Technology parameter
Cable type Drop Cable
Cable Count 1  2  4  6  8  12
Fiber color Blue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, Aqua
Fiber type 9/125 (G657A2)
Sheath color Black and white
Sheath material LSZH
Cable dimension (mm) 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km) 20
Min. bending radius (mm) 10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km) 0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N) 200; 600
Crush resistance (N/100mm) 1000; 2200
Operation temperature (℃) -20~+70

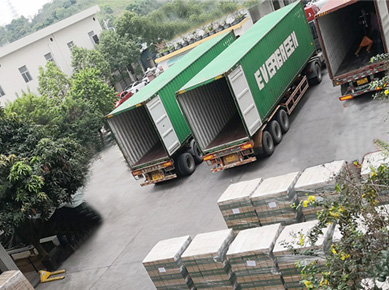

Package
