Blockless Type Fiber Optic PLC Splitter

  • Product Description

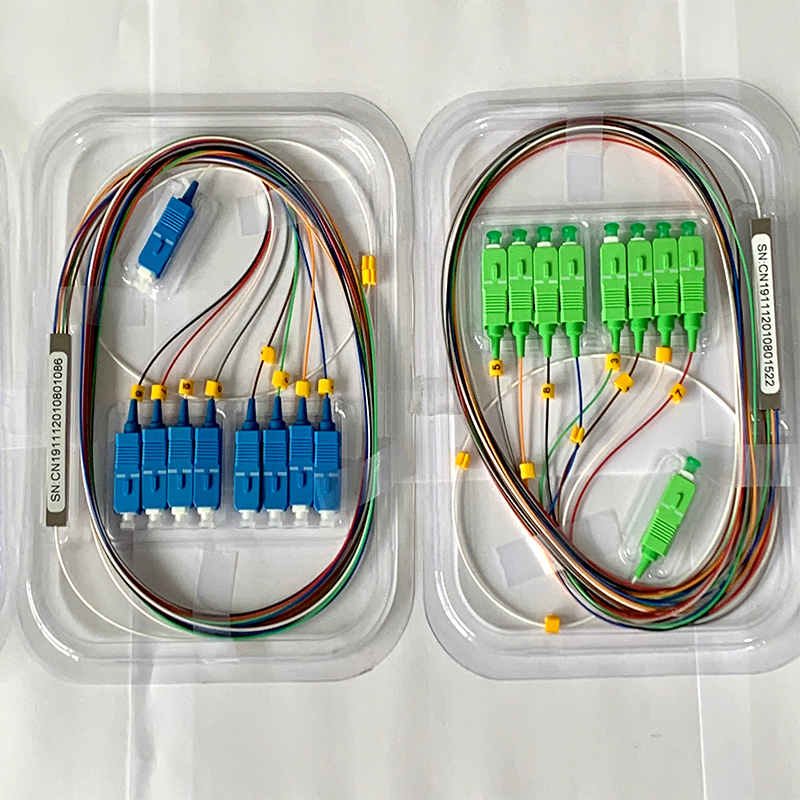

1×8 PLC Splitter divides or combines a signal inputs to 8 outputs.

1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. TopNet PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.

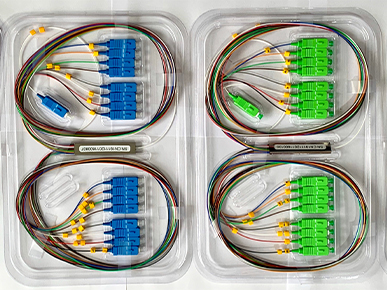

TopNet provides a various of 1xN and 2xN PLC ABS box splitters, including 1×2, 1×4, 1×8, 1×16,1×32, 1×64 ABS Box fiber type PLC splitter and 2×2, 2×4, 2×8, 2×16, 2×32, 2×64 blockless fiber type PLC splitters.

Characteristics
  • Low insertion loss, Low PDL and High reliability
  • Excellent Environmental & Mechanical Stability
  • Multi-way cost is low, the more roads, the more obvious cost advantage.
  • Excellent channel-to-channel uniformity
  • Qualified Under Telcordia GR-1221 and GR-1209
Technical Parameter
Product Type 1×2/2x2 1×4/2x4 1×8/2x8 1×16/2x16 1×32/2x32 1×64/2x64 1×128/2x128
Wavelength(nm) 1260~1650
I.L(dB) Typ. 3.6/4.2 7.1/7.2 10.4/10.6 13.6/13.8 17.2/17.5 20.1/20.5 25.0/25.2
Max. 4.3/4.5 7.4/7.6 10.7/11.0 14.0/14.8 18.0/18.0 21.5/21.5 25.8/25.8
Uniformity(Max.)(dB) 0.5/0.8 0.8/1.0 1.0/1.2 1.4/1.5 1.6/1.8 2.0/2.5 2.6/3.0
PDL(Max.)(dB) 0.2/0.2 0.3/0.3 0.3/0.3 0.3/0.3 0.3/03 0.5/0.5 0.8/1.0
TDL(Max.)(dB) 0.5
R.L(dB) ≥55(APC)/≥55(UPC)
Directivity(dB) ≥55
Operating & Storage -40~+85
Temperature
Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
