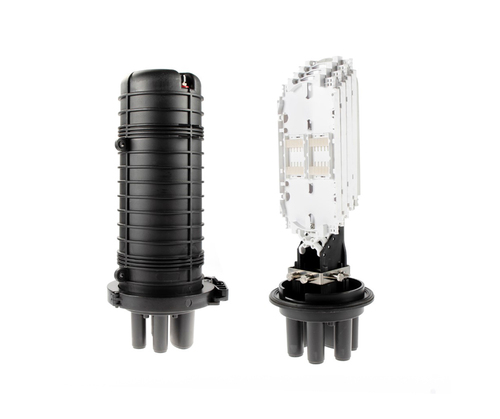

Dome Fiber Optic Splice Closure

  • Product Description

2in 2out Vertical Splice Closure

Characteristics
  • Durability: has good stability to heat, heat radiation, air, ozone etc.
  • Corrosion resistance: there is a strong resistance to dilute acid, salt, oxidant, fatty hydrocarbon.
  • The sealing technology: using repeatable opening type sealing components, in order to ensure the air tightness good waterproof performance.
  • Adopting PC material for plastic parts and excellent steel for the external fasters and structural parts.
  • With the function of connection and disconnection for electrical connection for the inlet and outlet FO cables.
  • Easy and fast to increase and reduce splice tray
Technical Parameter
Working temperature –40℃ to +60 ℃
Atmospheric pressure 70~106Kpa
Normal temperature sealing performance 72h, internal air pressure 70Kpa, without decrease
High temperature sealing performance 60 ℃168h, internal air pressure 70Kpa, without decrease
Tensile strength 1000N
Compressive strength 2000N/10cm2 within 1 min
Insulation resistance more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength
15KV DC, 2min, without spark over and flying arc
15KV DC, 2min, without spark over and flying arc
Working life more than 20 years

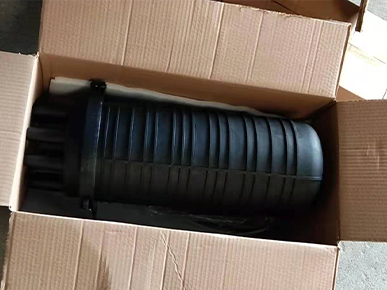

Package
