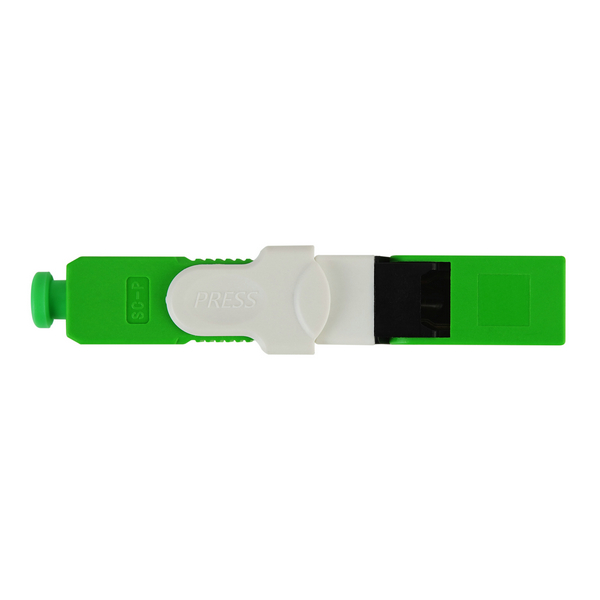

Fiber Optic Fast Connector

Applications

Applied to open FTTH fiber terminal
Used in closure boxes, cabinets, teminal boxes, etc.
Recovery and maintenance in fiber breakage and other accidents
LAN, WAN, data and video transmission
Construction and maintenance of fiber access for end users
Fiber entry for mobile base stations

Technical Parameter

Optical Fast Connector Optical Performance						Unit( dB)
(Reference to China Standard Q/CT 2299-2010-6.1)
Code	Test Item	Mechanical Q/CT 2299-2010-Chapter6.1		Fusion Splicer Type
				YD/T 2341.2-2011-Chapter 4.7
		Average Value	Maximum Value	Average Value	Maximum Value
a	Insertion Loss	≤0.3	Tested with standard plugs and adapters：≤0.5	≤0.25	Tested with standard plugs and adapters：≤0.4
			Test with any plug and adapter：≤0.7		Test with any plug and adapter：≤0.7
b	Return Loss	≥40（UPC）；≥55（APC）		≥50（UPC）；≥60（APC）
Mark1： IL and RL Test at 1310nm. If need test 1550nm, Please tell us first.
Mark2：IL and RL average and Maximum vale make as customer’s requirement.
Mark3：Return Loss can customized UPC standard -45~-50dB；APC Standard -55~-60dB

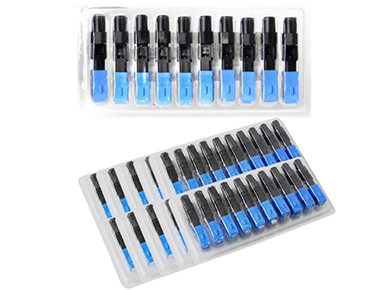

Package

Submit your inquiry

FAQ

Can I visit you?

Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need to pay by yourself. Then will refund after you place mass order as long as the quantity match to our MOQ.

What is your terms of payment ?

Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Can I negotiate the prices?

Yes,we may consider discounts for multiple container load of mixed goods.

How to ship the items to me?

Courier (DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of delivery?

EXW, FOB, CFR, CIF....etc

How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

Fiber Optic Fast Connector- TB03
