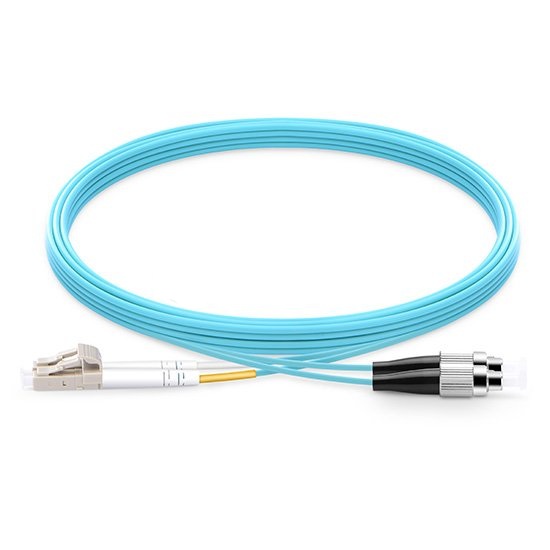

FC PATCH CORD_topnetsz.com

Applications

1. Telecommunication
2. Computer networks
3. CATV networks
4. Active device termination
5. Instrumentation

Features

PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available

Product Parameter

Characteristic		SM , MM
Connector type		FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)		0.9、2.0、3.0
Polishing grade		SM UPC	MM UPC	SM APC
Insertion loss	Grade B	≤0.15dB	≤0.1dB	≤0.15dB
	Grade C	≤0.30dB	≤0.30dB	≤0.30dB
Return loss		≥55dB	≥30dB	≥65dB
Interchangeability		≤0.1dB
Repeatability		≤0.1dB
Operation temperature （℃）		﹣20°C ~ +70°C
Storage temperature （℃）		﹣40°C ~ +80°C

Ordering Information

Name	RPA: Reference Patchcord
Connector 1	SU: SC/UPC
	SA: SC/APC
	LU: LC/UPC
	LA: LC/APC
	FU: FC/UPC
	FA: FC/APC
	TU: ST/UPC
	TA: ST/APC
	EU: E2000/UPC
	EA: E2000/APC, etc.
Connector 2	SU: SC/UPC
	SA: SC/APC
	LU: LC/UPC
	LA: LC/APC
	FU: FC/UPC
	FA: FC/APC
	TU: ST/UPC
	TA: ST/APC
	EU: E2000/UPC
	EA: E2000/APC, etc.
Fiber Count	SI: Simplex
Fiber Type	2D: SM G.652D (standard)
	7A1: SM G.657A1
	7A2: SM G.657A2
	OM1: MM 62.5/125um
	OM2: MM 50/125um
	OM3: MM 50/125um
	OM4: MM 50/125um
	OM5: MM 50/125um
Cable Length	1: 1m (standard)
	1.5: 1.5m
	2: 2m, etc
Cable Diameter	2: 2.0mm
Cable Diameter	3: 3.0mm (standard)
Jacket Material	L: LSZH

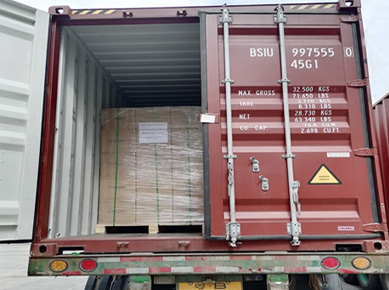

Package

Submit your inquiry

FAQ

Can I visit you?

Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need to pay by yourself. Then will refund after you place mass order as long as the quantity match to our MOQ.

What is your terms of payment ?

Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Can I negotiate the prices?

Yes,we may consider discounts for multiple container load of mixed goods.

How to ship the items to me?

Courier (DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of delivery?

EXW, FOB, CFR, CIF....etc

How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

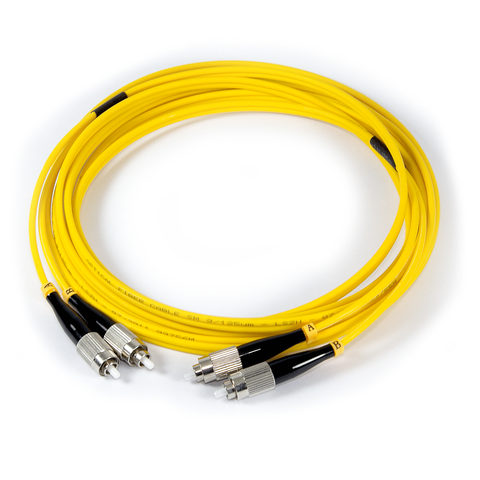

FC Patch Cord
