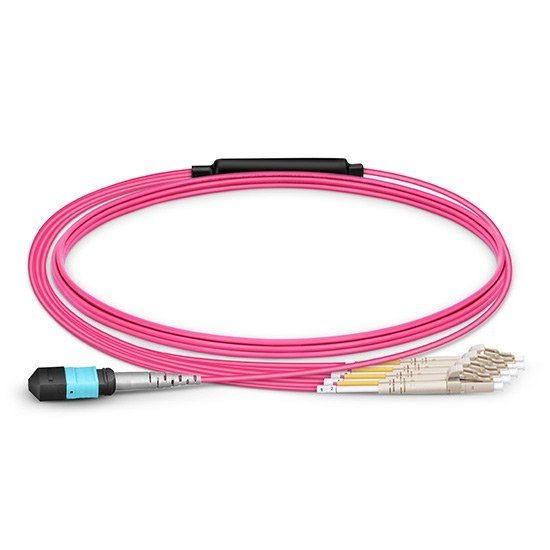

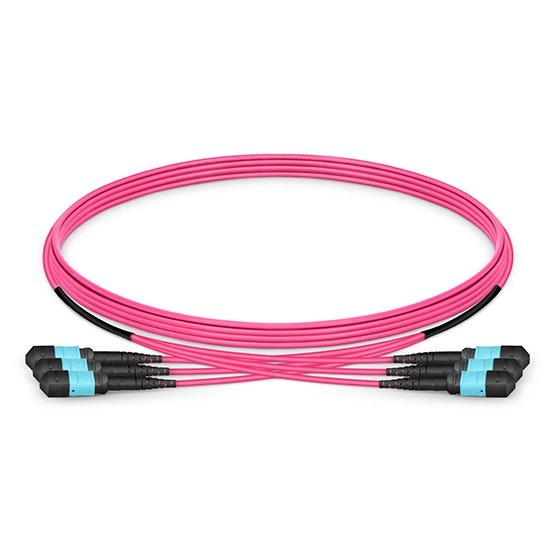

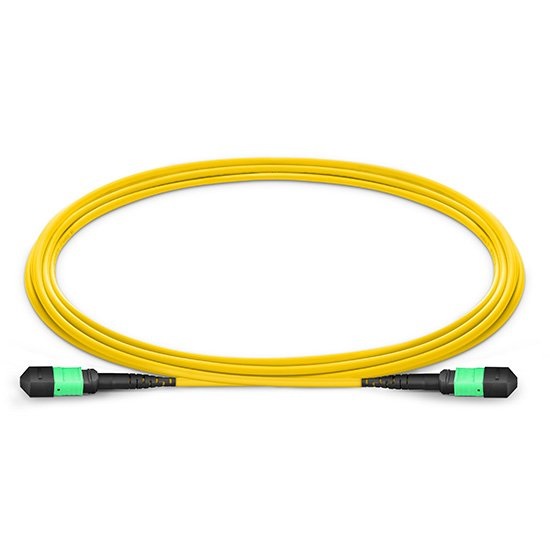

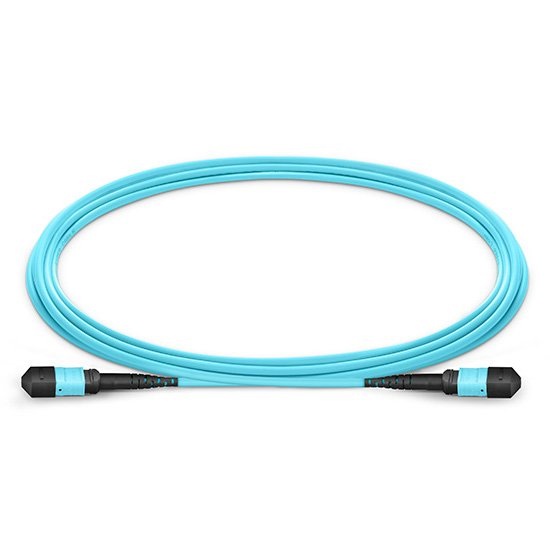

MPO-MTP Patch Cord

Product Description

The MPO/MTP patch cord is a multi-fiber patch cord which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.

MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Features

0.9mm, 2.0mm, and 3.0mm fiber optic cable are optional
Different fiber sequences and different key configurations are optional.
Available in 8/12/24 fibers
Ribbon ,Ruggedized or fan-out cord is available
LSZH, PVC,OFNR and OFNP rated jacket are optional.
Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements

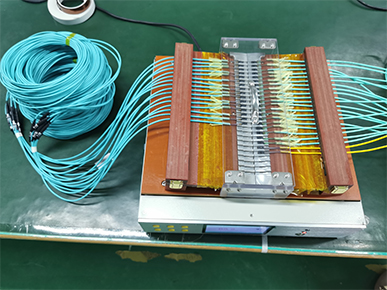

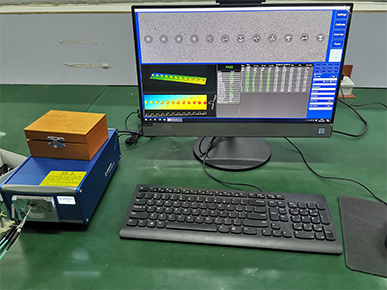

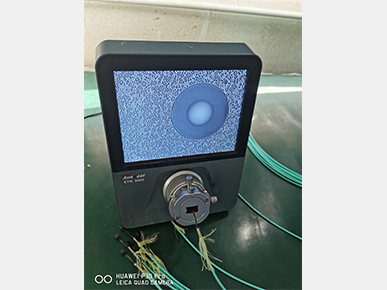

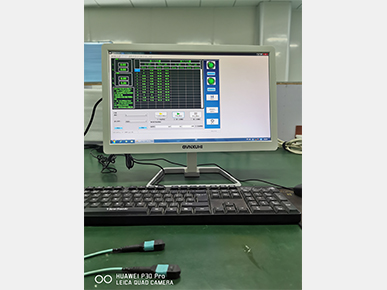

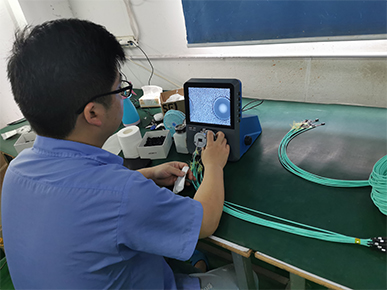

Product Testing

Product Parameter

Characteristic		SM , MM
Connector type		FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)		0.9、2.0、3.0
Polishing grade		SM UPC	MM UPC	SM APC
Insertion loss	Grade B	≤0.15dB	≤0.1dB	≤0.15dB
	Grade C	≤0.30dB	≤0.30dB	≤0.30dB
Return loss		≥55dB	≥30dB	≥65dB
Interchangeability		≤0.1dB
Repeatability		≤0.1dB
Operation temperature （℃）		﹣20°C ~ +70°C
Storage temperature （℃）		﹣40°C ~ +80°C

Applications

1. Telecommunication
2. Computer networks
3. CATV networks
4. Active device termination
5. Instrumentation

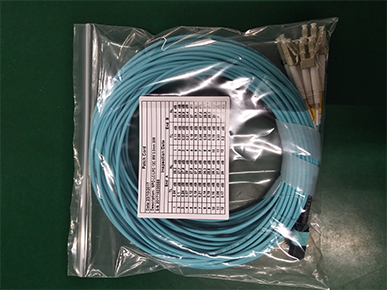

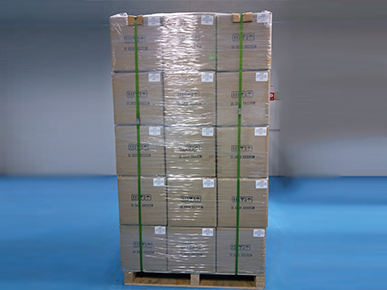

Package

Submit your inquiry

FAQ

Can I visit you?

Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need to pay by yourself. Then will refund after you place mass order as long as the quantity match to our MOQ.

What is your terms of payment ?

Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Can I negotiate the prices?

Yes,we may consider discounts for multiple container load of mixed goods.

How to ship the items to me?

Courier (DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of delivery?

EXW, FOB, CFR, CIF....etc

How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
