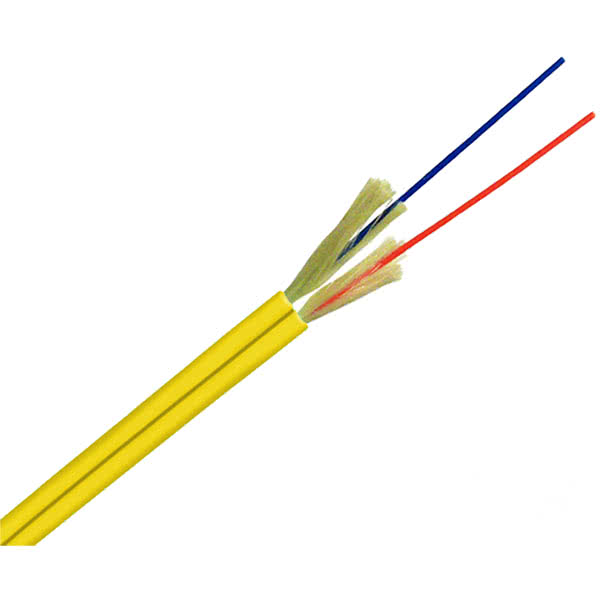

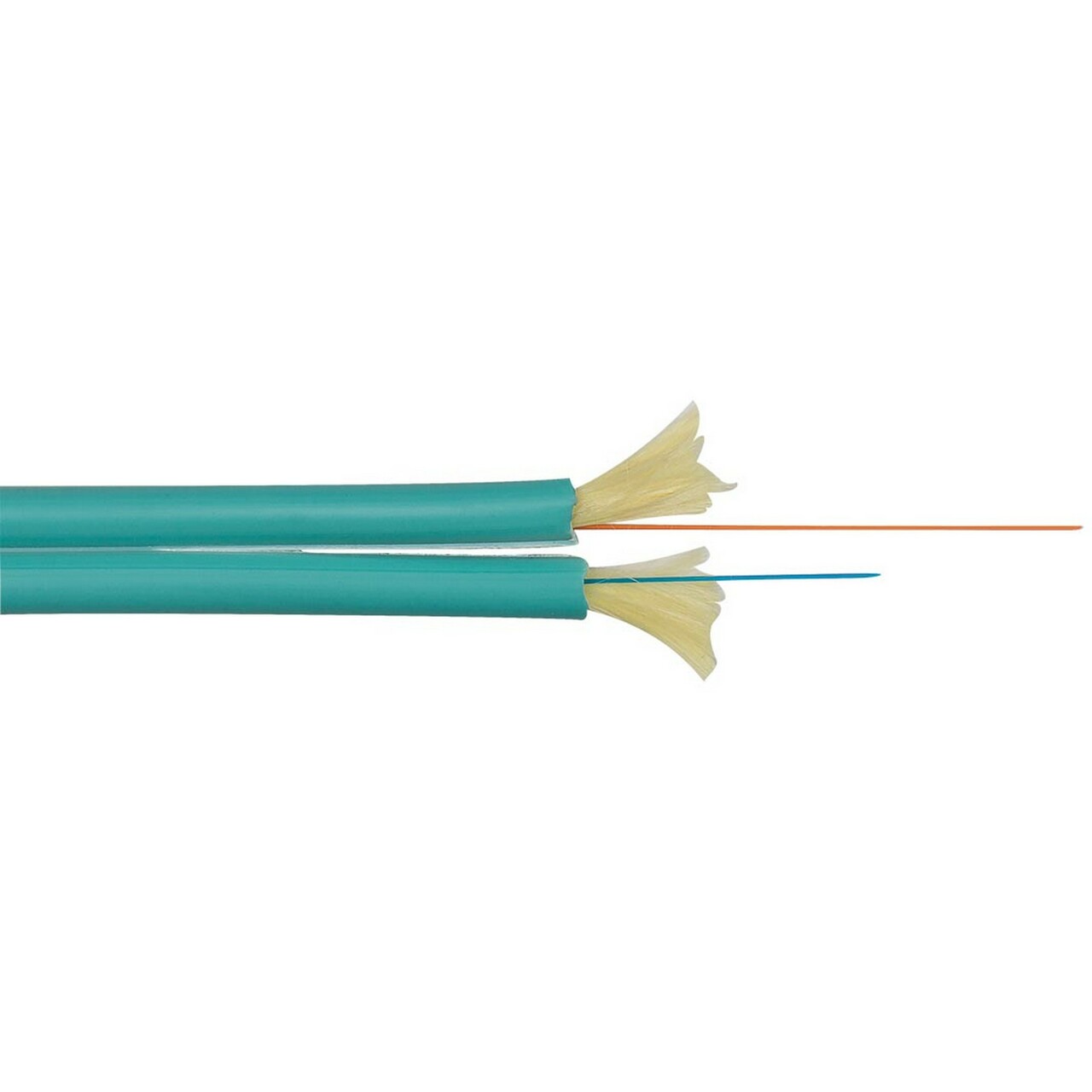

Indoor Duplex Fiber Optic Cable-GJFJV

Technical Parameter

Fiber Allocation Scheme

Fiber number	Tube number	Fiber per tube	Fiber type
2	2	1	Single mode or Multi mode

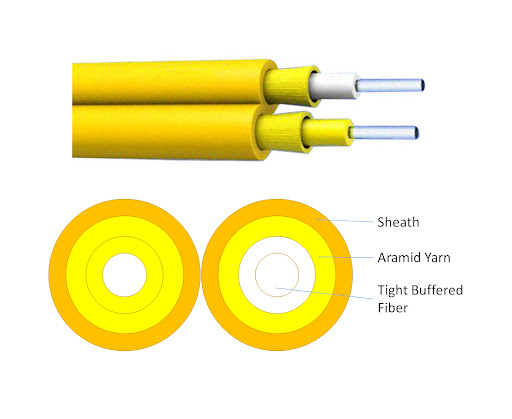

Cable construction details

Items		Description
Fiber Counts		2 cores
Strength Member	Material	Aramid yarn
	Color	Yellow
Tight Buffer	Dia (mm)	0.6±0.05mm or 0.9±0.05mm
	Material	PVC(LSZH、Hytrel、PA or Customer required)
	Color	Yellow and White
Outer Jacket	Material	PVC (LSZH or Customer required)
	Color	Yellow, Aqua, Purple or Orange
	Thickness(mm)	≥0.20 (Φ1.6mm)
		≥0.30 ( Φ2.0mm)
		≥0.40 (Φ2.8mm)

Cable Mechanical characteristic

Item	Cable Dia	Weight	Allowable Tensile Strength(N)		Crush Load (N/100mm)
	(mm)	(kg/km)	Long term	Short term	Long term	Short term
GJFJV-2	1.6×3.4 (±0.2)	5.2	40	80	100	500
	2.0×4.1 (±0.2)	7.8	80	150	100	500
	2.8×5.7 (±0.2)	11.6	150	300	100	500
Min Bending Radius(mm)	Long term	10D
	Short term	20D
Temperature characteristic		Base on the working temperature range: Dwell time 8H / 2cycles.
		The variation on attenuation：SM≤0.5 dB/km；MM≤0.3 dB/km
Hight temperature and humidity ability		≥500h，85℃/85%RH，No damage to the sheath.
Installation Temperature range		-5 ~ +50℃
Operation and transport temperature		-20 ~ +60℃

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

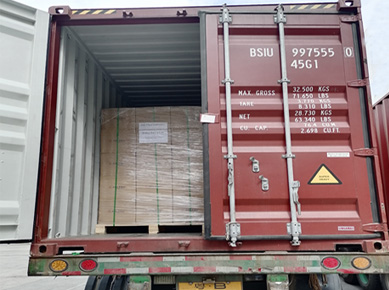

Package
