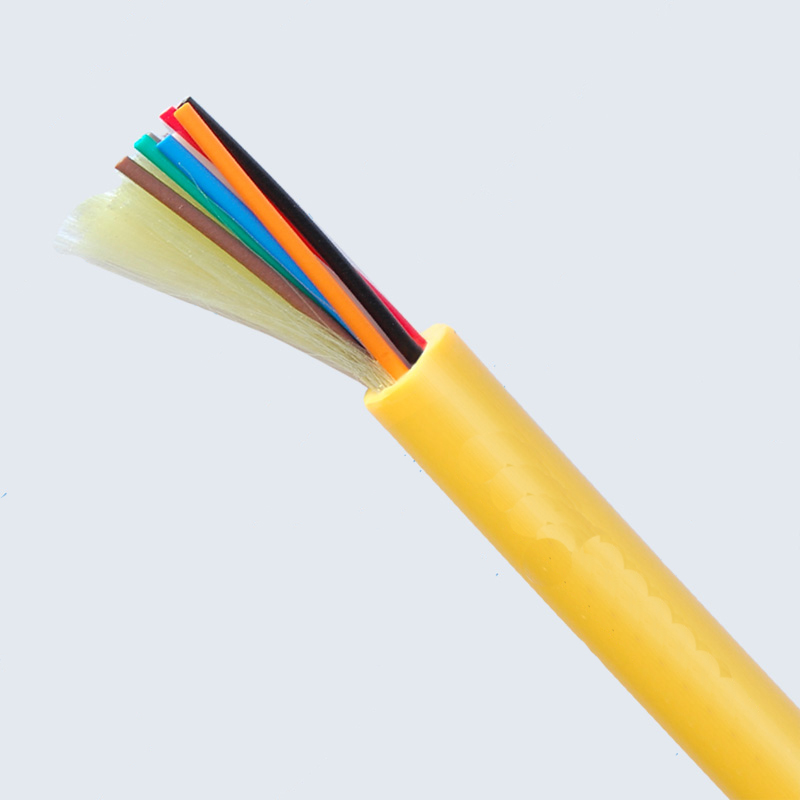

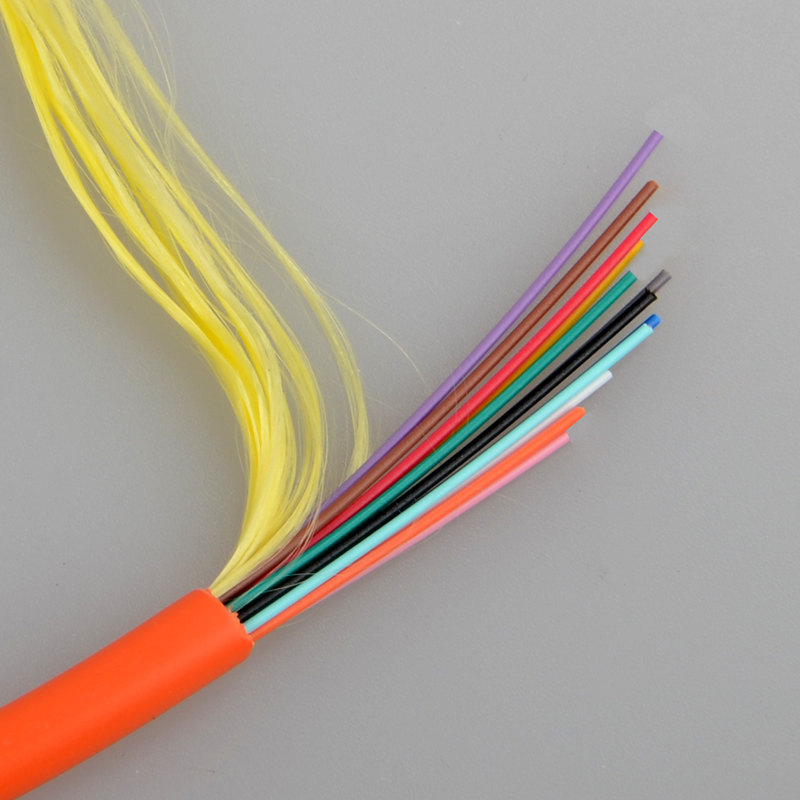

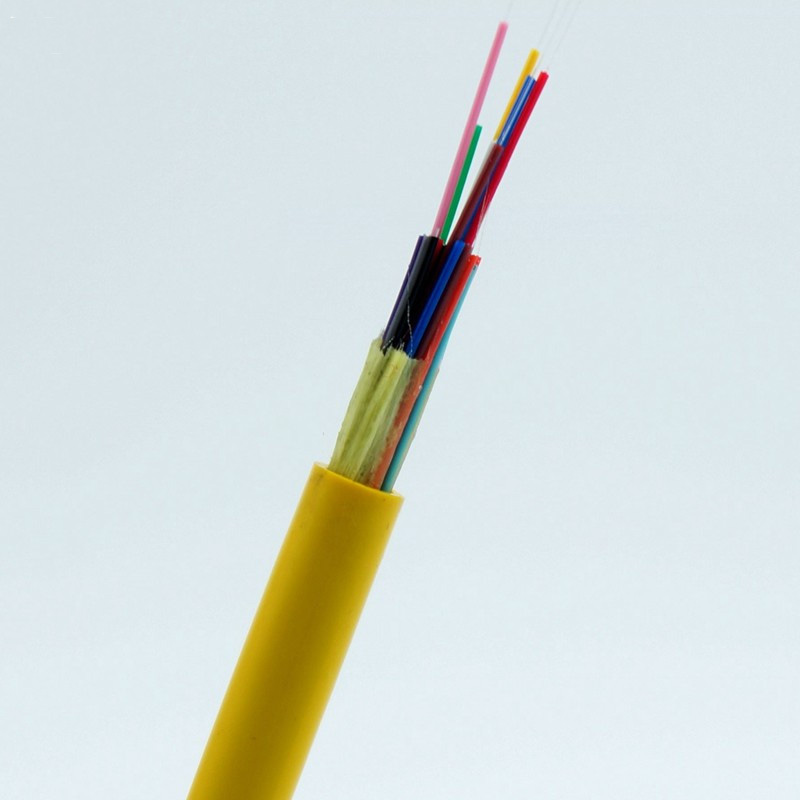

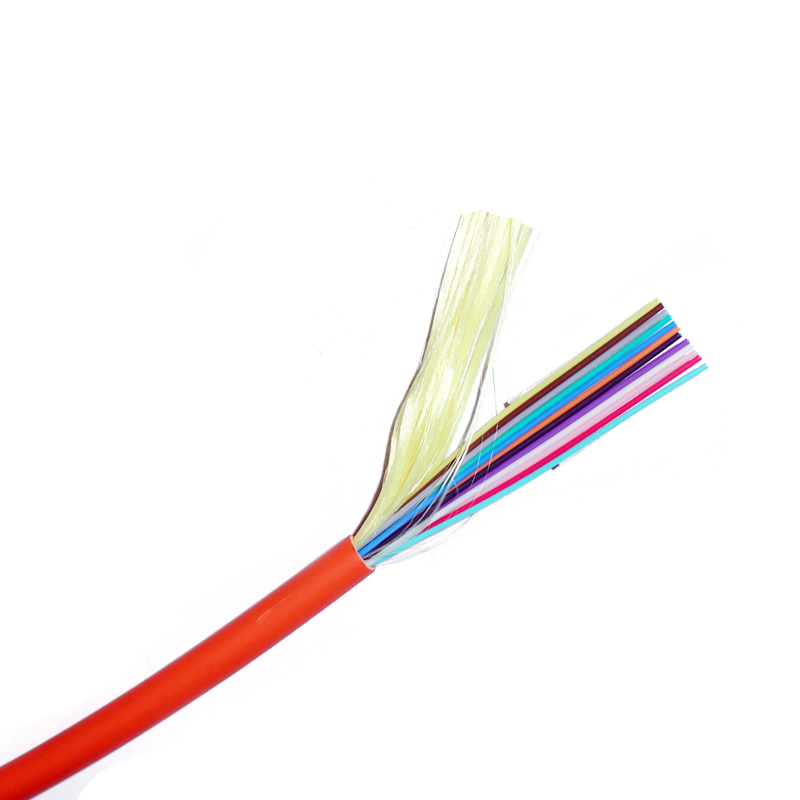

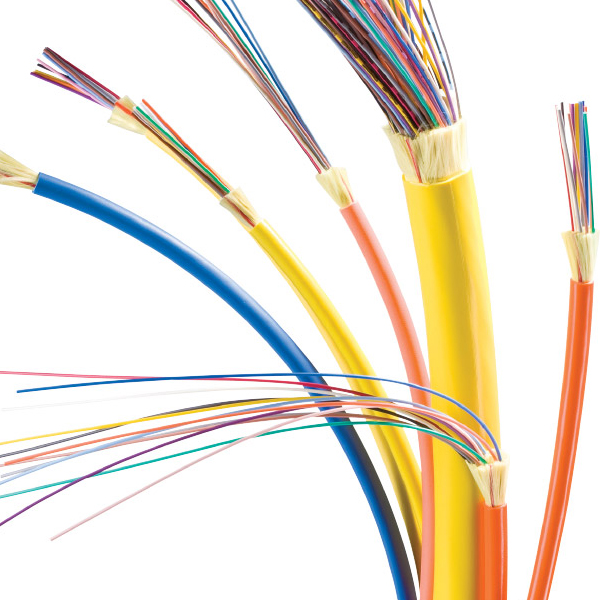

Indoor Distribution Fiber Optic Cable -GJFJH

Technical Parameter

Fiber Allocation Scheme

Fiber number	Tube number	Fiber per tube	Fiber type
2-24	2-24	1	Single mode or Multi mode

Cable construction details

Items		Description
Fiber Counts		2-24 cores
Strength Member	Material	Aramid yarn
	Color	Yellow
Tight Buffer	Dia (mm)	0.6±0.05mm or 0.9±0.05mm
	Material	PVC(LSZH、Hytrel、PA or Customer required)
	Color	Yellow and White
Outer Jacket	Material	PVC (LSZH or Customer required)
	Color	Yellow, Aqua, Purple or Orange

Cable Mechanical characteristic

Item	Fiber count	Cable Dia	Weight	Allowable Tensile Strength(N)		Crush Load (N/100mm)
Item	Fiber count	(mm)	(kg/km)	Long term	Short term	Long term	Short term
GJFJV	4	4.8	22	80	150	300	1000
	6	5.2	25	80	150	300	1000
	8	5.5	27	100	300	300	1000
	10	5.6	30	150	450	300	1000
	12	6.0	35	200	600	300	1000
	24	8.0	60	250	700	300	1000
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Temperature characteristic		Base on the working temperature range: Dwell time 8H / 2cycles.
Temperature characteristic		The variation on attenuation：SM≤0.5 dB/km；MM≤0.3 dB/km
Hight temperature and humidity ability		≥500h，85℃/85%RH，No damage to the sheath.
Installation Temperature range		-5 ~ +50℃
Operation and transport temperature		-20 ~ +60℃

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

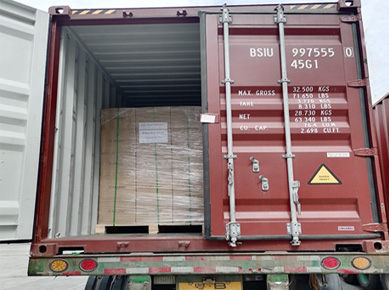

Package
