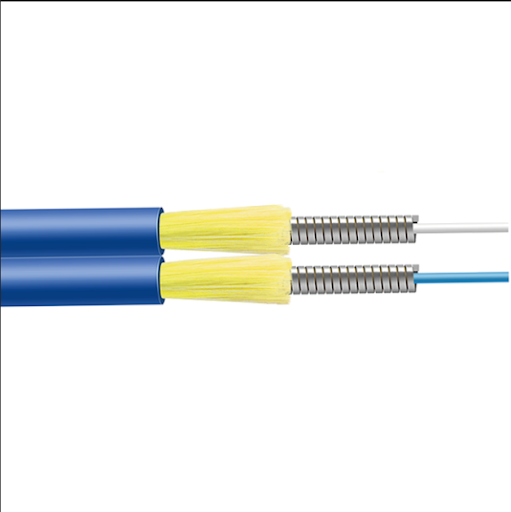

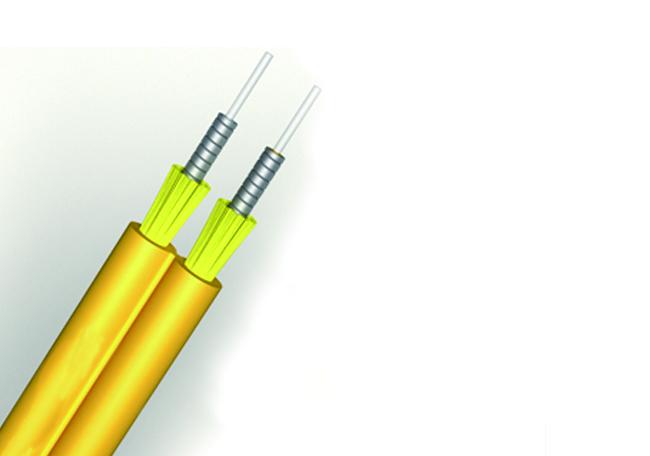

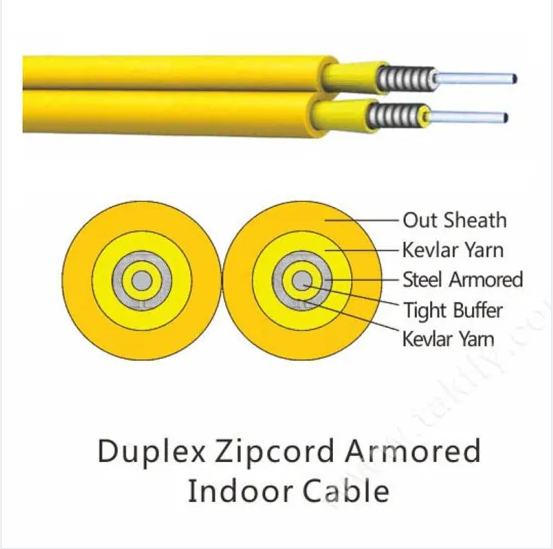

Indoor Duplex Armored Fiber Optic Cable-GJSFJV

  • Product Description
  • • Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
  • • High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
  • • A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
  • • Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;
  • • Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;
  • • Environmental friendly, Comply with RoHS.
Specifications
Cable   type Diameter Weight Max.Tension Min. Bending Radius Storage   temperature
(mm) (Kg/km) (N) (mm) (℃)
    Long-term Short-term Dynamic Static
GJSJV 2.0*4.1mm 21 160 300 20D 10D -20~+70
2.8*5.7mm 35 160 300 20D 10D
Requirement for Order
  • (1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
  • (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
  • (3) Jacket material: PE、LSZH ( can be required).
  • (4) The fiber and tube color: according to stranded color, can be required.
  • (5) Length of cable: generally is 2KM/drum, can be required.
  • (6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550

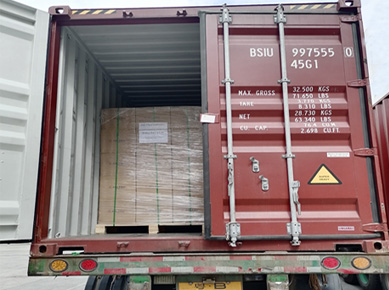

Package
