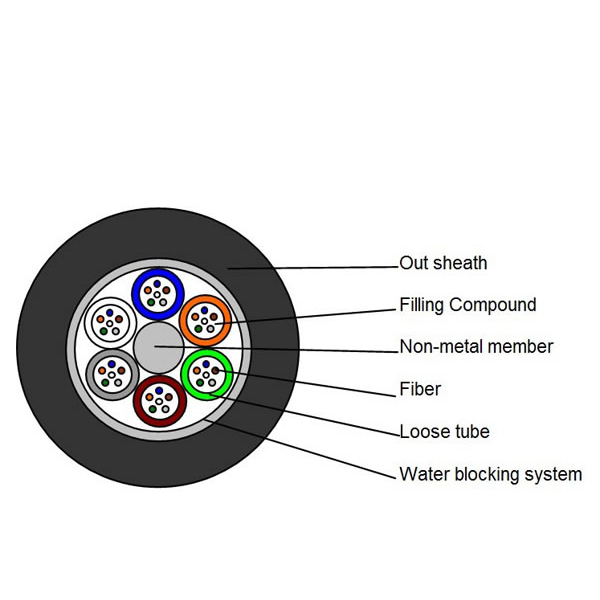

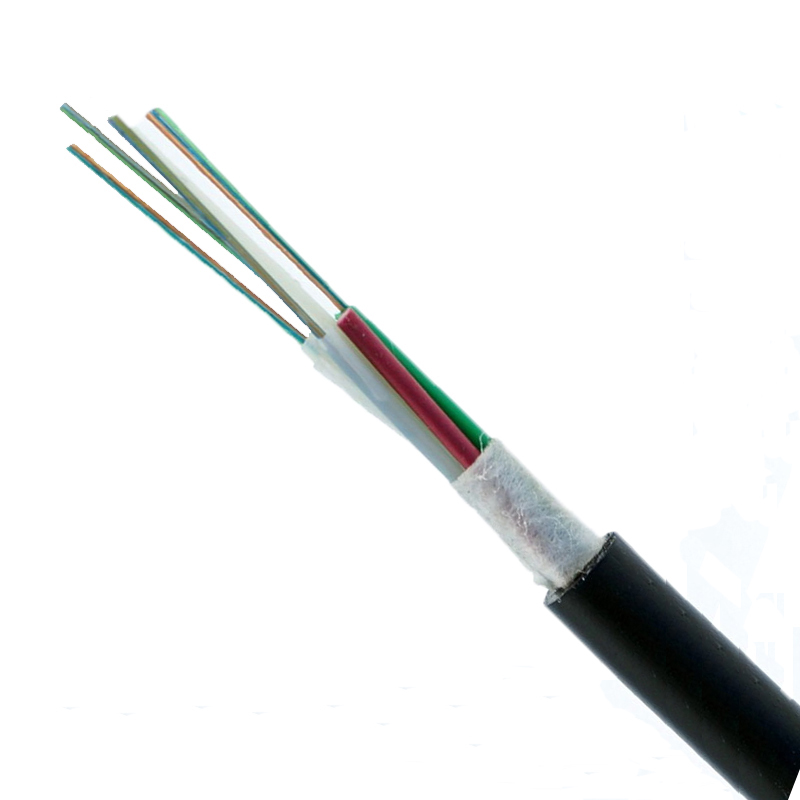

Outdoor Fiber Optic Cable- GYFTY

  • Product Description
  • •Good mechanical and temperature performance
  • •Low attenuation and dispersion
  • •High strength loose tube that is hydrolysis resistant
  • •Special tube filling compound ensure a critical protection of fiber
  • •FRP strength member ensures good anti-electromagnetic interference
  • •Good water-blocking tape prevent the sinking vertically
Specifications
Cable Count Out sheath Diameter (mm) Weight (kg) Minimum allowable TensileStrength (N) Minimum allowable Crush Load (N/100nm) Minimum Bending Radius(MM) Storage Temperature (℃)
Short term Long term Short term Long term Short term Long term
24-60 9.5 65 1500 600 1000 300 20D 10D ~40-+60
72 10.5 85 1500 600 1000 300 20D 10D ~40-+60
96 14.5 145 1500 600 1000 300 20D 10D ~40-+60
144 18.3 185 1500 600 1000 300 20D 10D ~40-+60
Requirement for Order
  • (1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
  • (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
  • (3) Jacket material: PE、LSZH ( can be required).
  • (4) The fiber and tube color: according to stranded color, can be required.
  • (5) Length of cable: generally is 2KM/drum, can be required.
  • (6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550

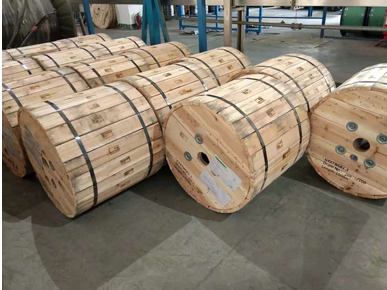

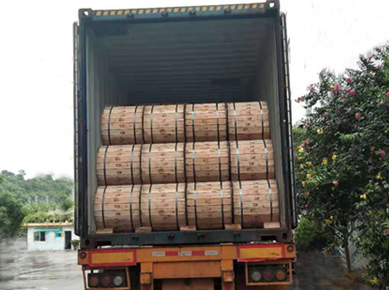

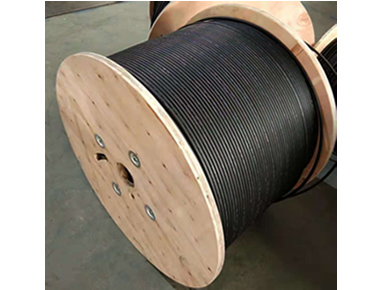

Package
