GYTA53_Topnet (Shenzhen) Communication Co., Ltd

Specifications

Cable model	Number of fibers	Number of casings	Number of filled ropes	Cable diameter	Cable weight	Allowable tensile force long/short Term	Allow crushing force long/short Term	Bending radius static / dynamic
Cable model	Number of fibers	Number of casings	Number of filled ropes	mm	Kg/Km	N	N	mm
GYTA53-2~6 cores	2~6	1	4	9.7	90	600/1500	300/1000	10D/20D
GYTA53-8~12 cores	8~12	2	3	9.7	90	600/1500	300/1000	10D/20D
GYTA53-14~18 cores	14~18	3	2	9.7	90	600/1500	300/1000	10D/20D
GYTA53-20~24 cores	20~24	4	1	9.7	90	600/1500	300/1000	10D/20D
GYTA53-26~30 cores	26~30	5	0	9.7	90	600/1500	300/1000	10D/20D
GYTA53-32~36 cores	32~36	6	0	10.2	104	1000/3000	300/1000	10D/20D
GYTA53-38~48 cores	38~48	4	1	11	117	1000/3000	300/1000	10D/20D

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

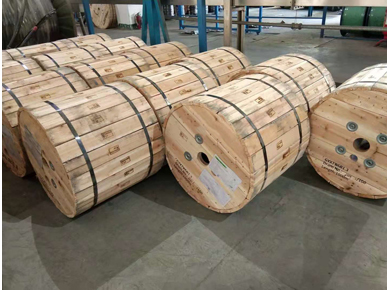

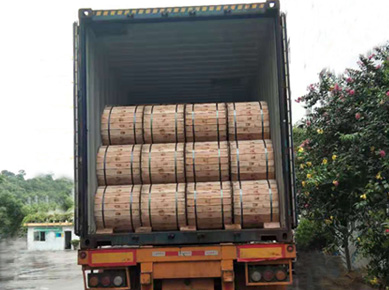

Package

Submit your inquiry

FAQ

Can I visit you?

Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need to pay by yourself. Then will refund after you place mass order as long as the quantity match to our MOQ.

What is your terms of payment ?

Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Can I negotiate the prices?

Yes,we may consider discounts for multiple container load of mixed goods.

How to ship the items to me?

Courier (DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of delivery?

EXW, FOB, CFR, CIF....etc

How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

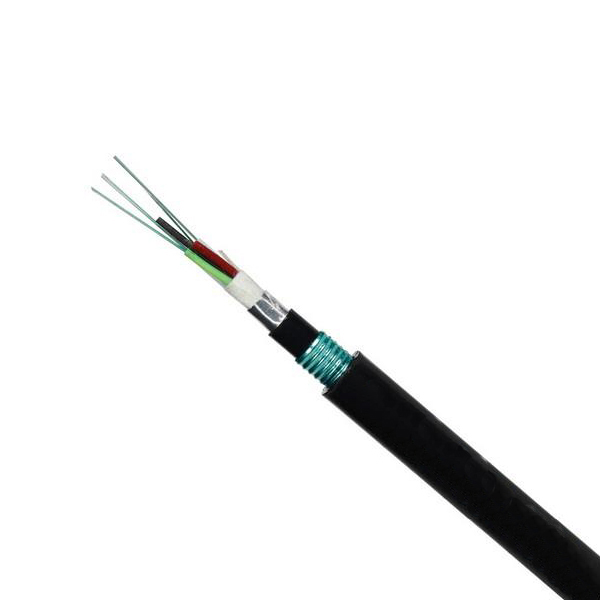

Outdoor Fiber Optic Cable- GYTA53
