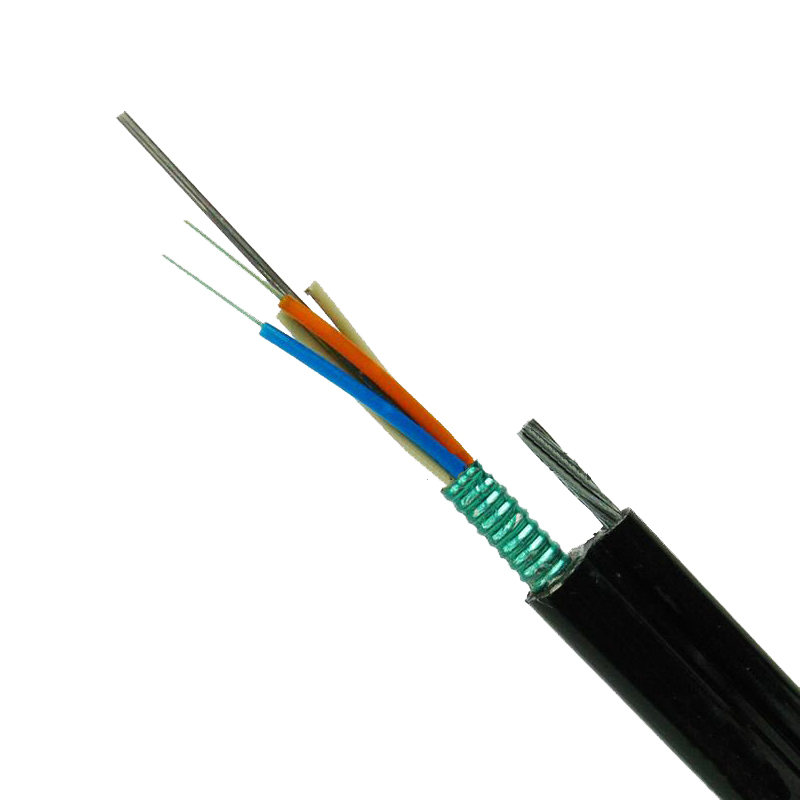

Outdoor Figure 8 Self-supporting Fiber Optic Cable-GYTC8S

Specifications

No.offibers	6	12	24	48	72	96	144
No.oftubes	1	1	2	4	6	8	12
Fiberspertube	6	6	6	12	12	12	12
FillerRod	4	3	1	1	0	0	0
Tubediameter(±0.1mm)	2	2	2	2	2	2	2
Thicknessofloosetube (±0.05mm)	0.3	0.3	0.3	0.3	0.3	0.3	0.3

Outerdiameter(±0.5mm)	5.4X8.6	5.4X8.6	5.4X8.6	5.4X9.8	5.4X10.8	5.4X12.2	5.4X14.9
	-15	-15	-15	-16.5	-17.5	-19	-22
Thicknessofoutdiameter(±0.1mm)	1.6	1.6	1.6	1.6	1.6	1.7	1.7

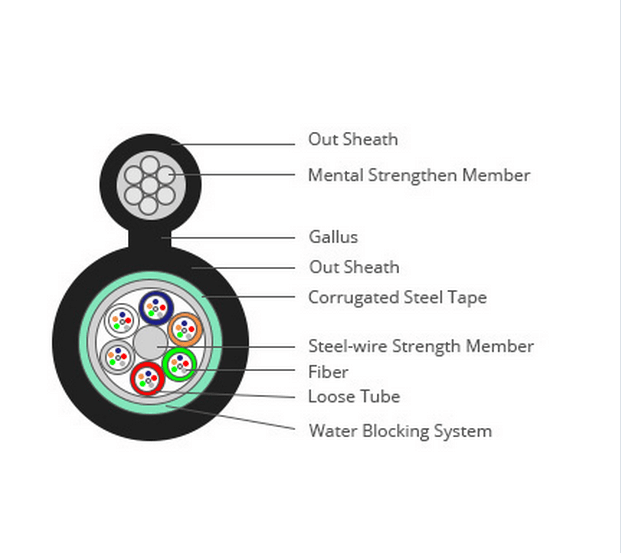

Loosetube	Material	PBT			Color	Standardspectrum
Waterblockingsystem	Material	Waterblockingtape/Fillinggel
Armor	Material	Corrugatedsteeltape
Centralstrengthmember	Material	Steelwire			Size	1.4mm(6-48)
						2.0mm(72-144)
Mentalstrengthmember	Material	Strandedsteelwire			Size	1.0mm*7
Gallus	Material	PE			size	2.0*1.5mm
					（h*w）
Outsheath	Material	PE			Color	Black

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.

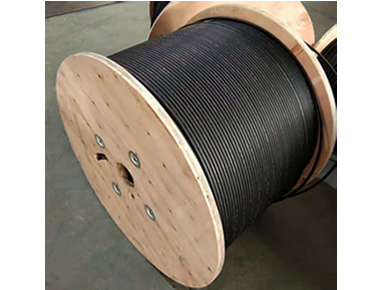

(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

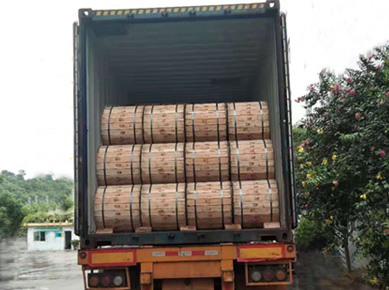

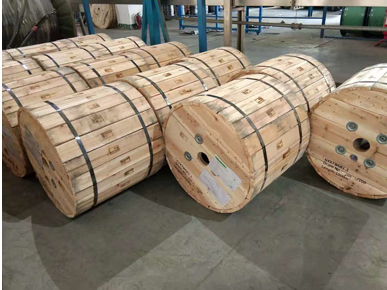

Package
