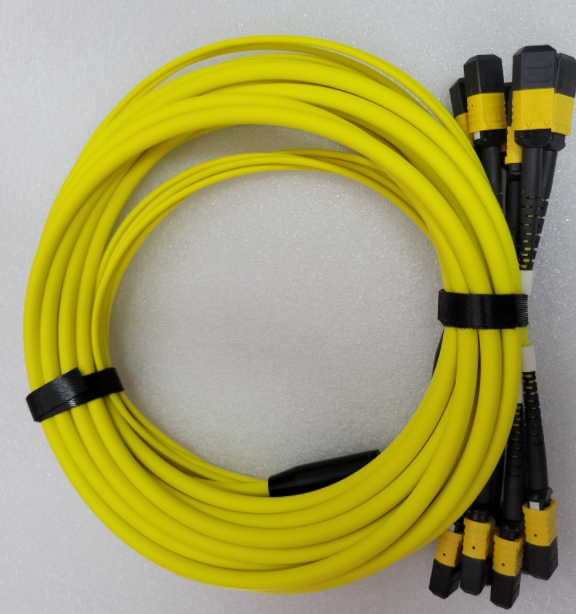

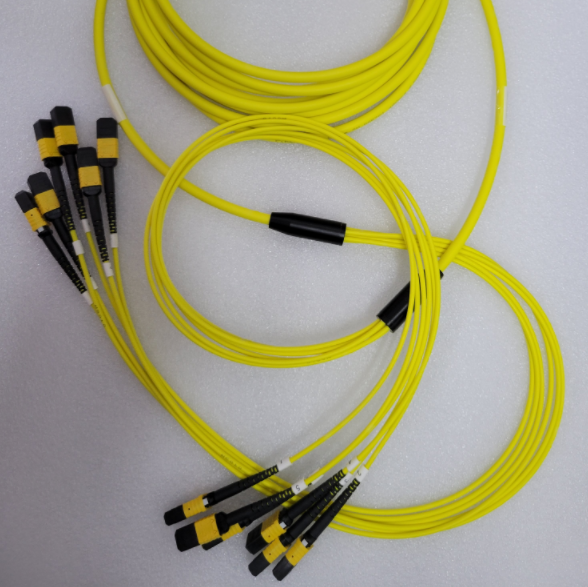

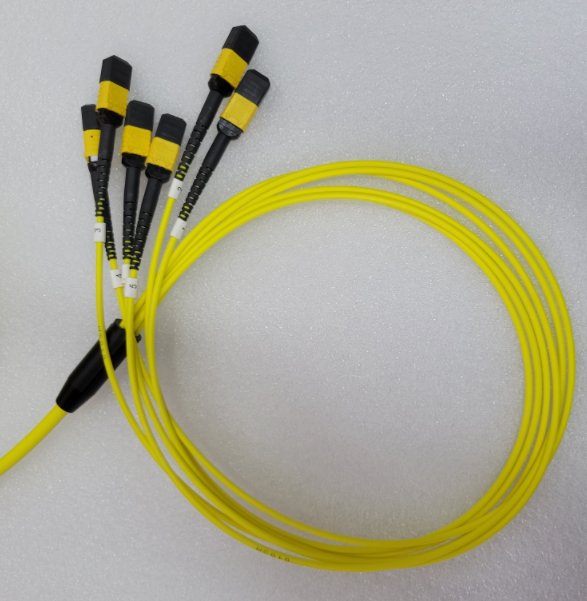

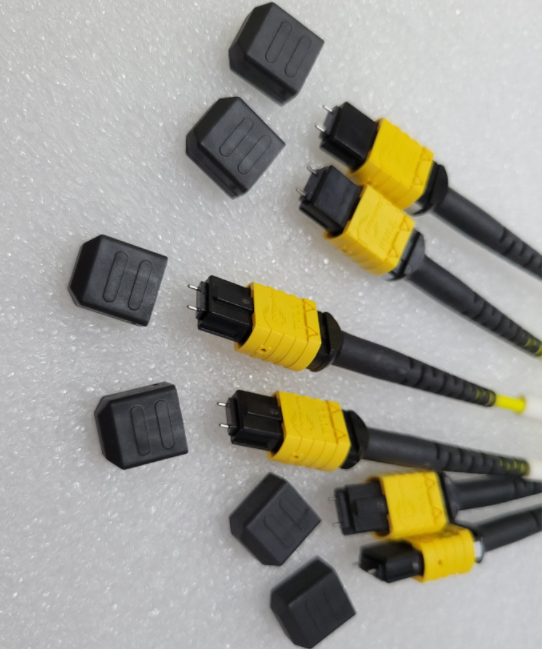

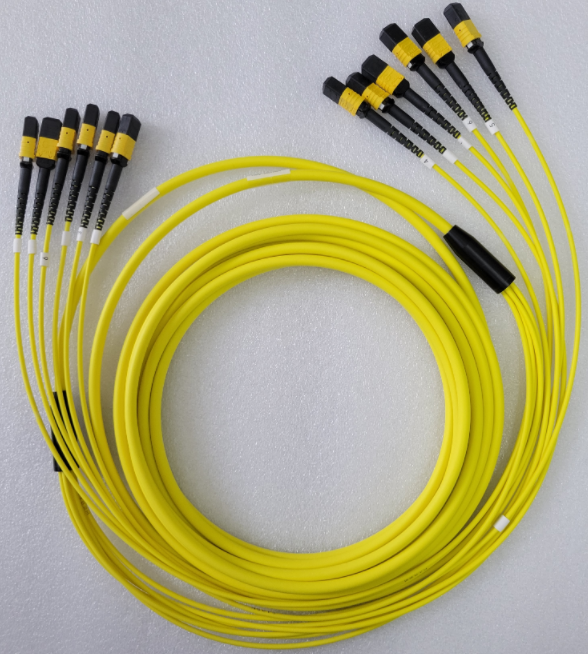

MPO-MTP Patch Cord-SingleMode

  • Product Description

The MPO/MTP patch cord is a multi-fiber patch cord which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.

MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Features
  • 0.9mm, 2.0mm, and 3.0mm fiber optic cable are optional
  • Different fiber sequences and different key configurations are optional.
  • Available in 8/12/24 fibers
  • Ribbon ,Ruggedized or fan-out cord is available
  • LSZH, PVC,OFNR and OFNP rated jacket are optional.
  • Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements
Product Testing
Product Parameter
Characteristic SM , MM
Connector type  FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)  0.9、2.0、3.0
Polishing grade  SM UPC MM UPC SM APC
Insertion loss  Grade B ≤0.15dB ≤0.1dB ≤0.15dB
Grade C ≤0.30dB ≤0.30dB ≤0.30dB
Return loss  ≥55dB ≥30dB ≥65dB
Interchangeability ≤0.1dB
Repeatability  ≤0.1dB
Operation temperature (℃) ﹣20°C ~ +70°C
Storage temperature (℃) ﹣40°C ~ +80°C
Applications
  • 1. Telecommunication
  • 2. Computer networks
  • 3. CATV networks
  • 4. Active device termination
  • 5. Instrumentation

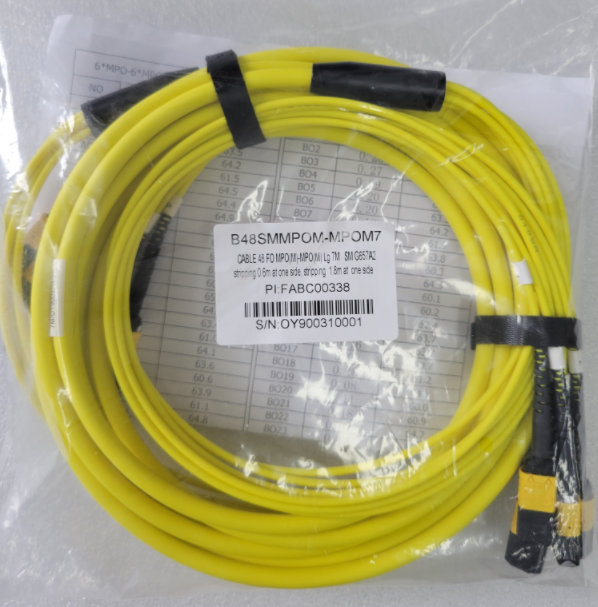

Package
