Indoor 24 cores Mini Breakout Fiber Cable-GJBFJH

  • Product Description
  • •Optical fibre: 1 to 24 Optical fibre G657A2  with weak bending radius.
  • •300-350 μm coating protect bare fiber.
  • •Loose -buffered.
  • •Flexible strength members: Aramid yarns or water-swelling element.
  • •Outer jacket:UV protect , white Low Smoke Zero Halogen (LSOH) sheath compliant with CPR Cca s1 d1 a1 regulations.
Application
  • (1)Indoor metal free 24 fibers mini breakout cable for FTTH.
  • (2)Completely dry design.
  • (3)The cable is for direct connector assembly.
  • (4)High flexibility and light weight.
  • (5)Halogen free and non-corrosive fire gases.
  • (6)Low fire load for high safety requirements.
  • (7)Each fiber is individually reinforced, this design allows for quick termination to connectors.
  • (8)It is suitable for conduit runs, riser and plenum applications.
  • (9)It does not require patch panels or boxes.
Parameter
Fiber Count          24
Micro  Module Diameter Material
900 μm±100um  LS0H (Meeting with CPR)
Cable OD Diameter Material
8.0±0.1mm LS0H (Meeting with CPR)
Cable weight (kg/km) 68kg
Operation Temperature -20℃ to +60 ℃
Installation Temperature  -10℃ to +60 ℃
Transport and Storage Temperature -20℃ to +60 ℃
Max Tensile Load Long-Term       Short-Term
20daN   40daN
Minimum Radius of static curvature 20 mm
Dynamic bending radius 15mm
Crush resistance maximum load 15 daN/cm
Requirement for Order
  • (1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
  • (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
  • (3) Jacket material: PE、LSZH ( can be required).
  • (4) The fiber and tube color: according to stranded color, can be required.
  • (5) Length of cable: generally is 2KM/drum, can be required.
  • (6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550

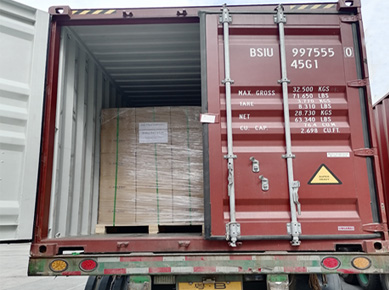

Package
