GYFXTY_Topnet (Shenzhen) Communication Co., Ltd

Specifications

(1)Two in one cable ,outdoor to indoor application.
(2)Loose-buffered micro-module for field connectivity.
(3)One single cable for all applications: Overhead, Duct.
(4)Direct connection to the OTO without disconnecting the OTB.
(5)Quick and easy access to the subscriber line over several metres.
(6)Micro-module venting directly in the PTO.
(7)Compliant with CPR regulations.

Application

(1)Cable have been designed to meet the needs of FTTH connections.
(2)Cable connects the external connection point and the residence connection box, for the following types of installation:
Duct (min. 8/10mm).
Overhead for spans of 50m.
(3)The cable buffering is adapted to using field connectors with no special tools required.
(4)The HDPE outer jacket can easily be removed, freeing an LS0H-FR (1) subscriber line, that can be stripped and installed via the following:
Laying in a cable tray.
Gluing all the way to the subscriber's optical termination outlet.

Parameter

Fiber Count	1		2	4
Micro Module	Diameter			Material
	900 μm±100um			LS0H (Meeting with CPR)
Strength member	0.5mm			FRP
Inner Jacket	3.0mm			LS0H
Outer Jacket	6.0mm			HDPE
Outer Jacket Thickness	1.2mm
Cable Gross Weight (KG/KM)	30.08	30.16		30.32
Operation Temperature	－40℃ to +70 ℃
Installation Temperature	－5℃ to +50 ℃
Transport and Storage Temperature	－40℃ to +70 ℃
Tension (daN)	Long-Term	Short-Term
	40	80
Crush Resistance (N/mm)	500	250
Bending radius	20D( Static)	10D( Dynamic)

Requirement for Order

(1)Fiber sort:Single mode:G652,G657,Multi mode:OM1,OM2,OM3,OM4.
(2)Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3)Jacketmaterial: PE、LSZH( can be required).
(4)The fiber and tube color: according to stranded color, can be required.
(5)Length of cable: generally is 2KM/drum, can be required.
(6)Other requirement:can be negotiated.

Fiber optical Characteristic(after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

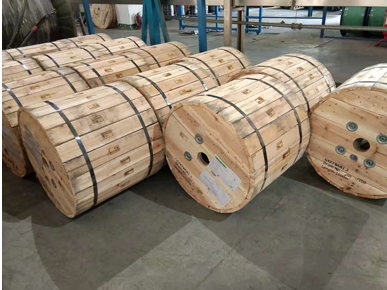

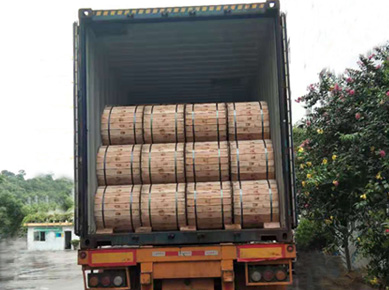

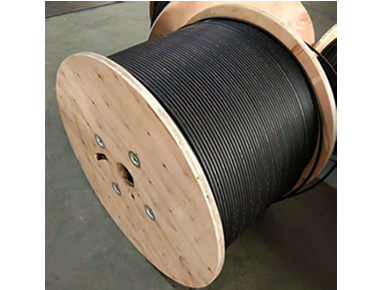

Package

Submit your inquiry

FAQ

Can I visit you?

Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need to pay by yourself. Then will refund after you place mass order as long as the quantity match to our MOQ.

What is your terms of payment ?

Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.

Can I negotiate the prices?

Yes,we may consider discounts for multiple container load of mixed goods.

How to ship the items to me?

Courier (DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

What is your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of delivery?

EXW, FOB, CFR, CIF....etc

How about the Warranty?

There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

Indoor Outdoor Micro Module Fiber Cable- GYFXTY
