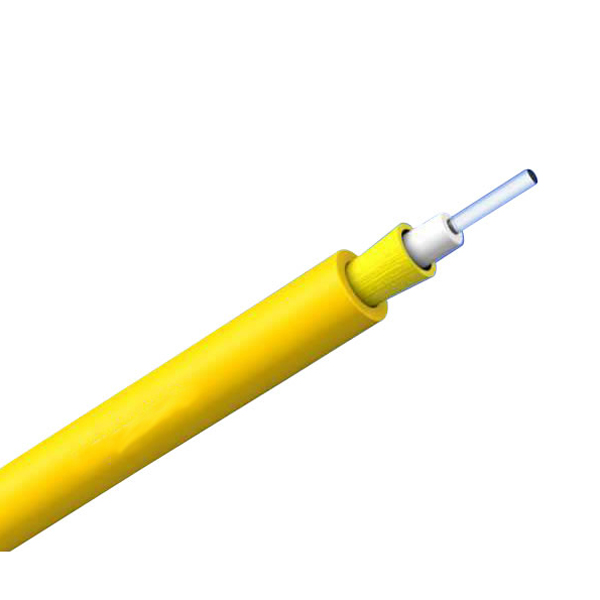

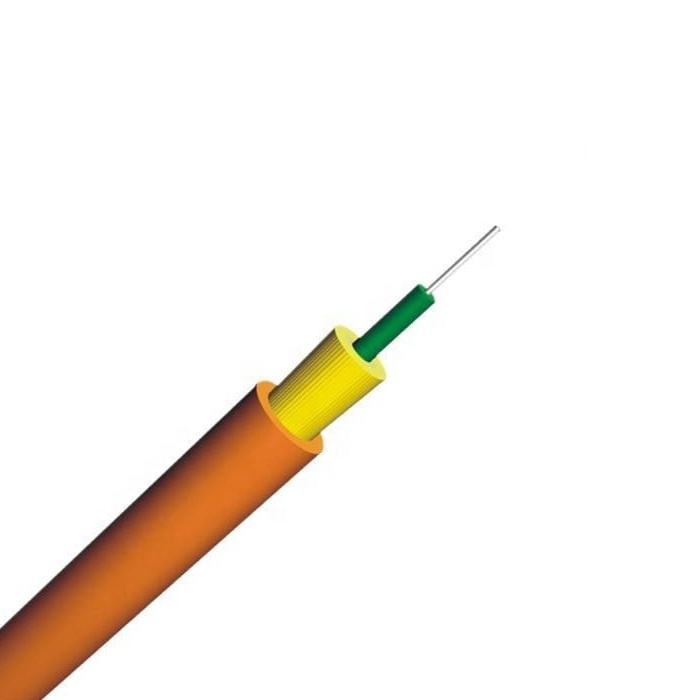

Indoor Micro Module Fiber Cable- GJFJ

Application

(1)Cable is a Solution for Telecom networks.
(2)Cable meet the connecting FTTH.
(3)The cable used to link subscribers to the optical connection point (whether indoor or outdoor).
(4)Lightweight and featuring a small diameter, suited for the following applications: Connecting subscribers via partitions, Laying against floor slabs.
(5)Installing in ducts and cluttered shafts.
(6)The cables can be glued to surfaces.
(7)Discreet design: compact diameter (4mm) and sheath colour (ivory).
(8)UV-resistant sheath and waterproof design for outdoor use.
(9)Excellent tensile strength and mechanical resistance to crushing.
(10)Fire resistant LSOH-FR (1) sheath, CPR compliant.
(11)Designed for easy handling and quick installation.

Parameter

Fiber Count	1		2	4
Micro Module	Diameter			Material
	900 μm±100um			LS0H (Meeting with CPR)
Cable OD	Diameter			Material
	4.0±0.1mm			LS0H (Meeting with CPR)
Cable weight (kg/km)	17.48	17.56		17.72
Operation Temperature	－20℃ to +60 ℃
Installation Temperature	－10℃ to +60 ℃
Transport and Storage Temperature	－20℃ to +60 ℃
Max Tensile Load	Long-Term	Short-Term
	20daN	40daN
Minimum Radius of static curvature	20 mm
Dynamic bending radius	15mm
Crush resistance maximum load	15 daN/cm

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

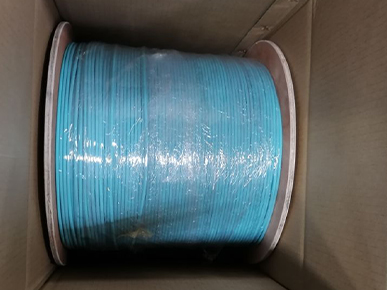

Package
